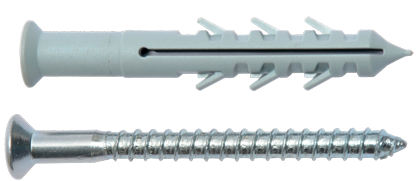

Nylon Frame Plugs - NFP

Polymide PA6 nylon - steel, zinc plated
download pdf

download pdf

Testing NFP

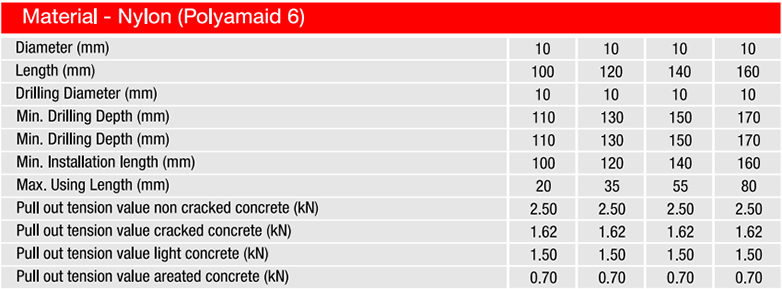

material nylon


Varient short expansion cskscrew, Material Polyamide PA6 nylon


nylon frame plug

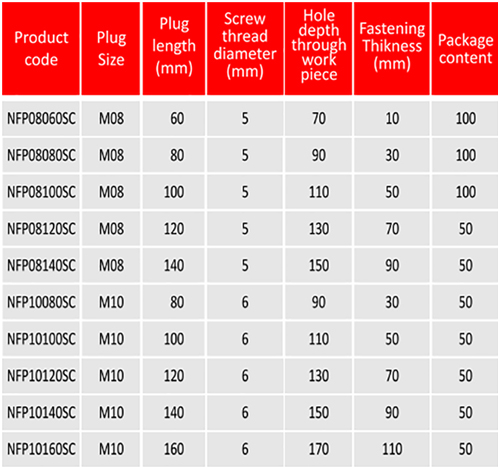

nfp

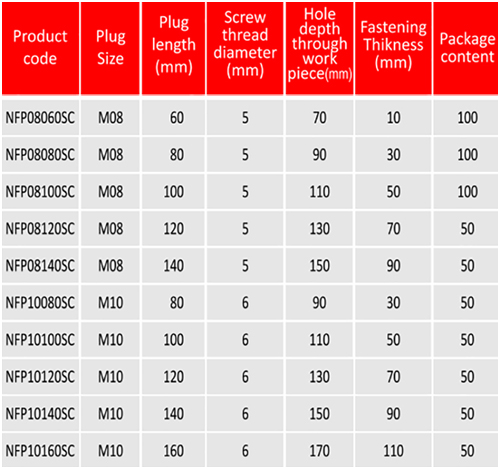

nfp sh

sh

Advice
For installations in perforated and hollow bricks drill with a rotary action only ( hammer switched off )

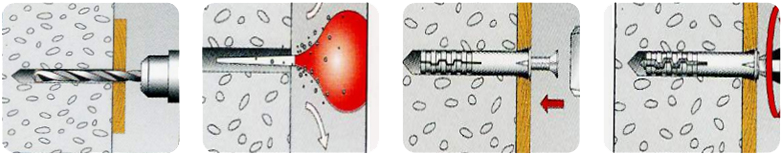

installation

• Special anti-expansion design lets the user drive both plug and screw into the hole together without the plug expanding before it is fully inserted
• Side-links stop plug from breaking open during insertion, ensuring positive action when screw is driven in
• Screw guide stops screw from penetrating sides, by ensuring positive tracking down entire length
• M-teeth combined with side-links and screw-guide, ensure entire plug face is forced aginst walls of hole, for enhanced grip in soft materials
• Offset block profile allows plug to hold firmly against sides of hole when expansion begins
• Countersunk collar reduces risk of bi-metallic corrosion when fastening non-ferrous fixtures
• Nylon material absorbs vibration and noise. Extended expansion length guarantees maximum load-bearing capacity
