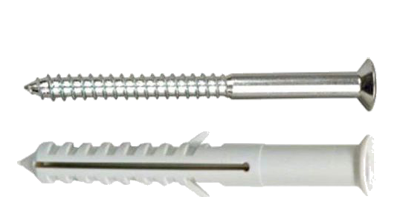

Nylon Hammer Fixing Plugs - NHF

Polymide PA6 nylon - steel, zinc plated/stainless steel / A2-304
download pdf

download pdf

Testing NHF

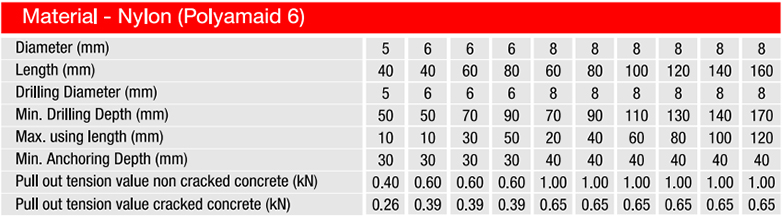

material nylon


Varient Countersunk Head, Material Polyamide PA6 Nylon, CK


nylon hammer fixing plug

ck

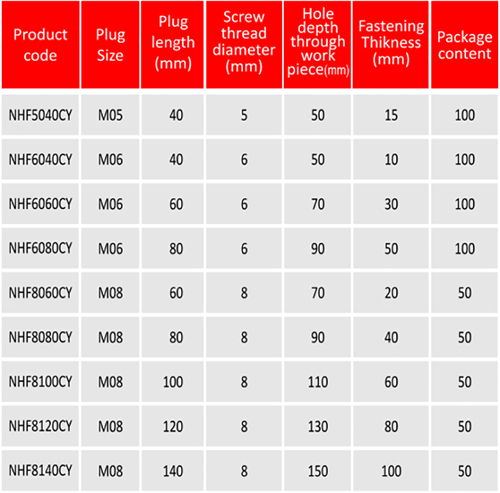

Varient Cylindrical Head, Material Polyamide PA6 nylon, CY

nylon hammer fixing plug

cy

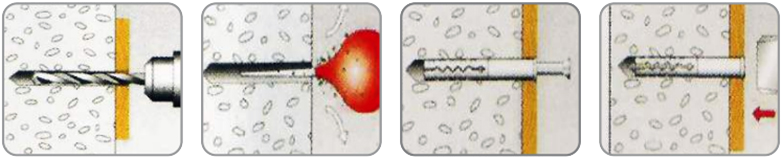

installation

• Deforming crumple zone allows for quick adjustment of depth on uneven surfaces
• Brand point allows for quick and easy insertion of the Hammer plug into the pre-drilled hole
• Long expansion aces provides a more efficient fix even in light weight aerated concrete
• Off-set block profile ensures that as plug expansion commences, it is held firm against the hole
• Knock in protection prevents premature expansion when driving in the screw, yet maker it possible to adjust the depth of plug in the hole
• Position of the nail in front of the thread start permits easy drive in facility yet allows excellent screw out qualities for possible removal and re-use
• Oblique thread using the barbed hook principle achieves good pull out figures without sacrificing speed of application
• Reinforced screw head facilitates high knock-in loads with the added benefit of grip around the plug neck holding the material firm.
